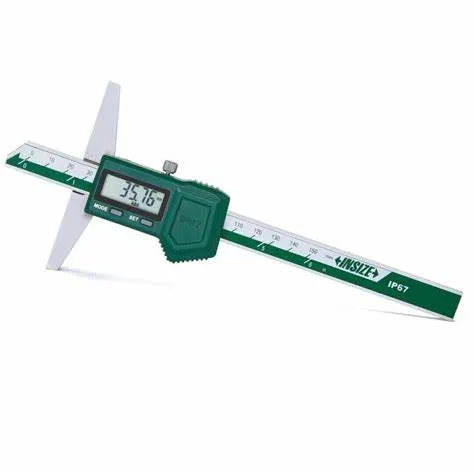

The Insize 1149-200 Digital Depth Gauge is a rugged, high-precision tool designed to measure the depth of components accurately in demanding environments. With IP67-rated dust and waterproof protection, it is suitable for industrial applications where exposure to dust, water, or coolants is common. The tool offers advanced functions for absolute and relative measurements, ensuring reliable performance in manufacturing, machining, and quality control.

Key Features:

• Measuring Range: 0-200 mm (0-8 inches).
• Resolution: 0.01 mm / 0.0005 inches for detailed, precise readings.
• Accuracy: ±0.03 mm for dependable results.
• IP67 Protection: Dustproof and waterproof, ideal for use in harsh environments.
• Button Functions:
  • Zero Reset (requires zeroing after every power-on).
  • On/Off Button for power management.
  • Set Button for quick calibration.
  • MM/INCH Conversion for switching between metric and imperial units.
  • ABS/REL Mode: Toggle between absolute and relative measurements.
  • Hold Function: Locks measurements for easy recording.
• Automatic Power On/Off: Activates with movement and powers off when idle to save battery.
• Battery-Powered: Operates on a CR2032 battery (included).
• Material: Made of stainless steel for durability and corrosion resistance.
• Compliance: Meets DIN862 standards for measurement precision and reliability.
• No Data Output: Designed for manual measurements without digital data transfer.

Specifications:

• Measuring Range: 0-200 mm (0-8 inches)
• Resolution: 0.01 mm / 0.0005 inches
• Accuracy: ±0.03 mm
• Material: Stainless steel
• Protection Rating: IP67 (dustproof and waterproof)
• Battery Type: CR2032 (included)
• Compliance: Meets DIN862 standards

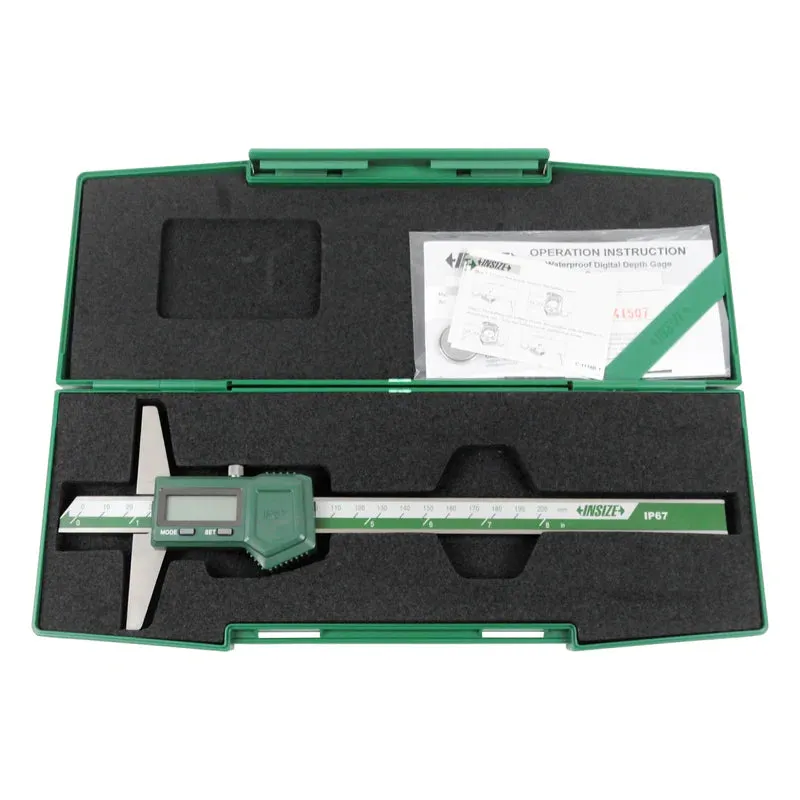

What’s Included:

• Insize 1149-200 Digital Depth Gauge
• CR2032 Battery (pre-installed)
• Instruction Manual
